220MHz Band Pass Filter

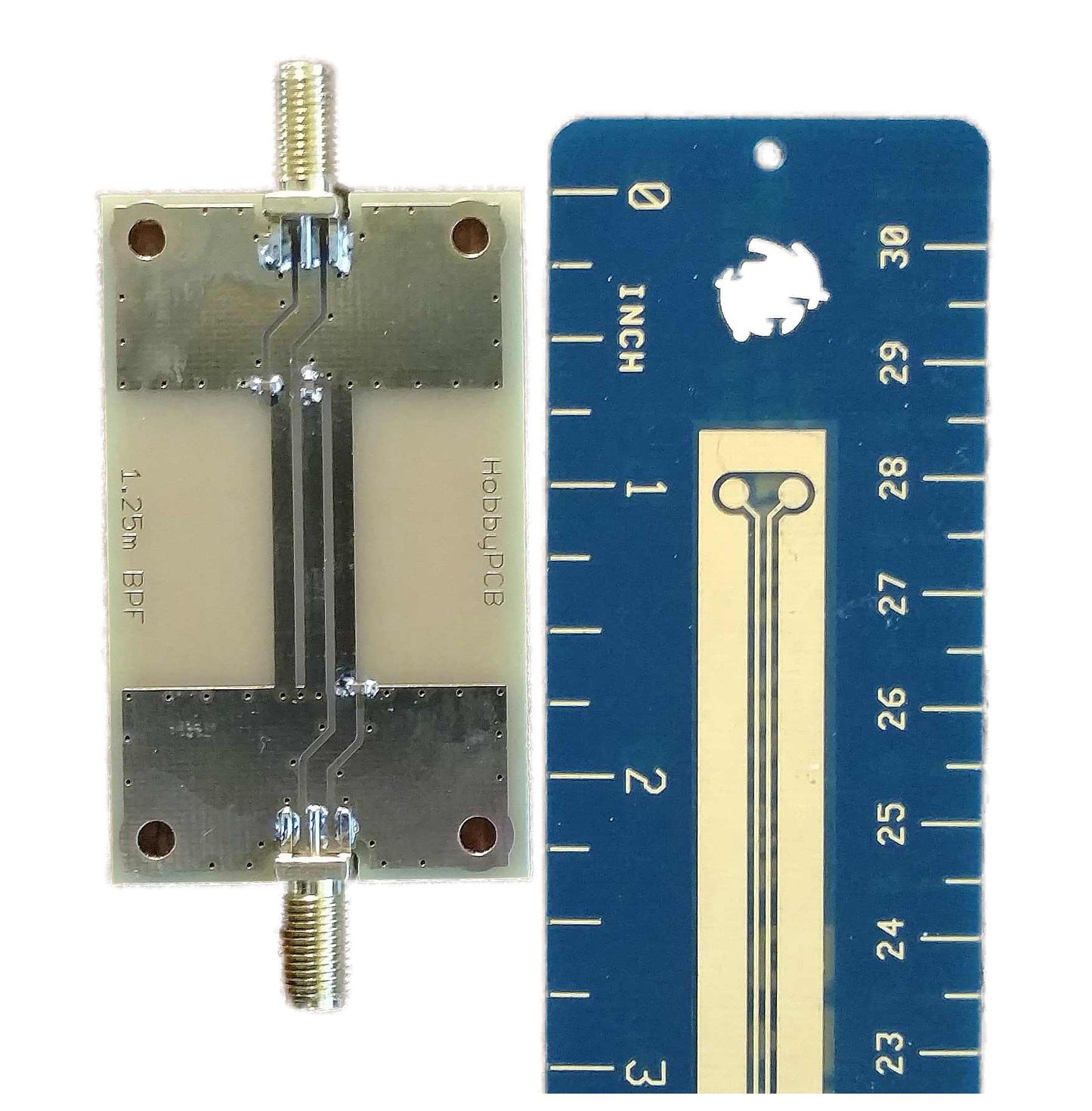

Cost effective bandpass filter suitable for RX and TX application up to 20W. Microstrip design constructed on FR-4 board with gold plating for low insertion loss.

Uses:

• Before and after LNA's to reject out-of-band signals
• TX output harmonic rejection for transmitters, transceivers and transverters
• IF filtering for microwave transverters

220 Filter Specs:

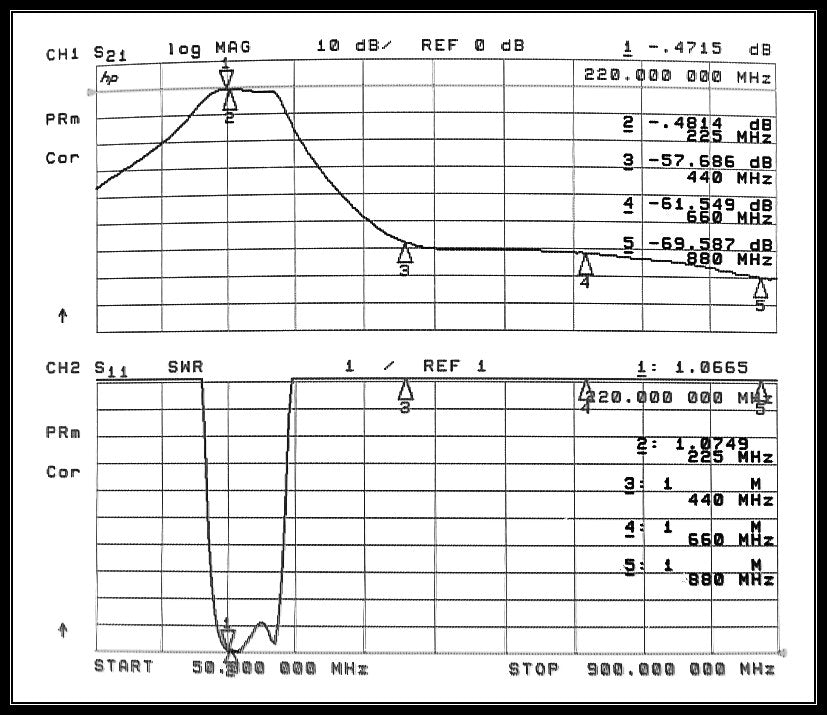

Insertion Loss: < 0.7 dB 220-225 MHz

Rejection: < -50 dB @ 440 - 1500 MHz, < -30 dB @ 100 MHz

Power: 20W max.
Connectors: SMA
