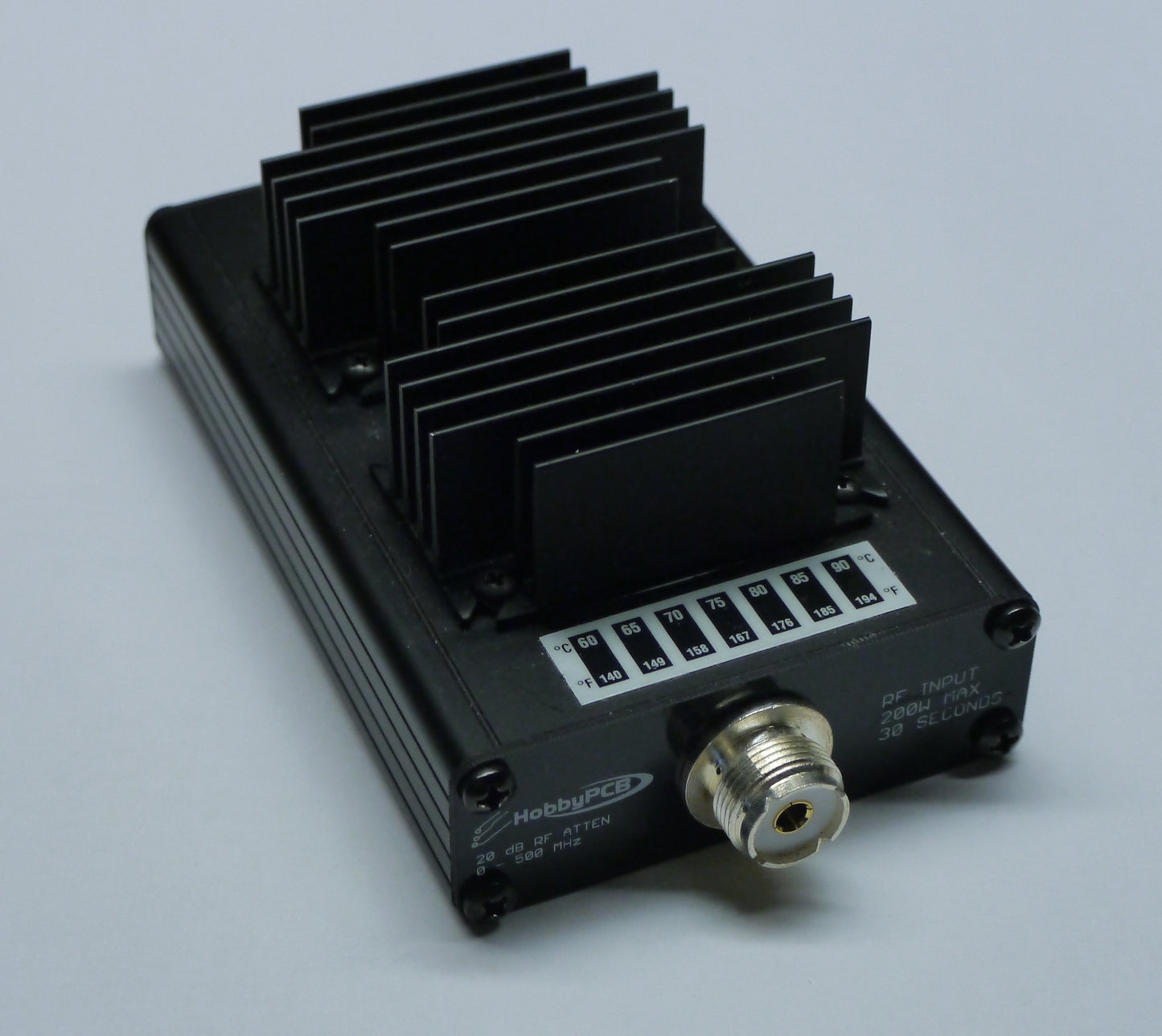

AT-20 200W Attenuator Kit
AT-20 200W Attenuator Kit
Regular price
$105.00 USD
Regular price
Sale price
$105.00 USD
Unit price
per
Couldn't load pickup availability
Frequency Range: 0 - 500 MHz
Input/output Impedance: 50 Ohms
Power: 200W for 30 seconds, 50W Continuous

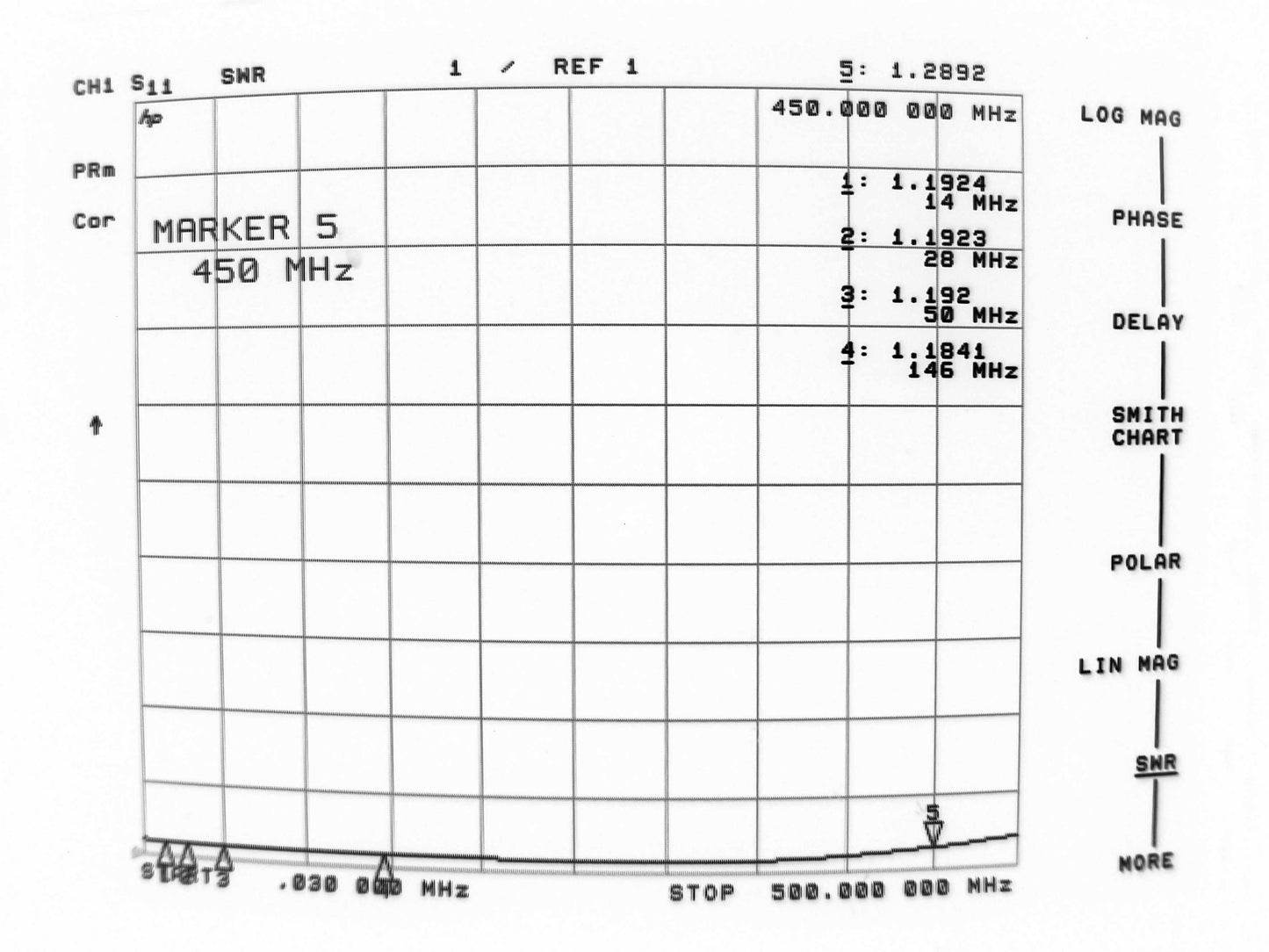

VSWR: 1.2:1 up to 250 MHz; 1.4:1 Max at 500 MHz

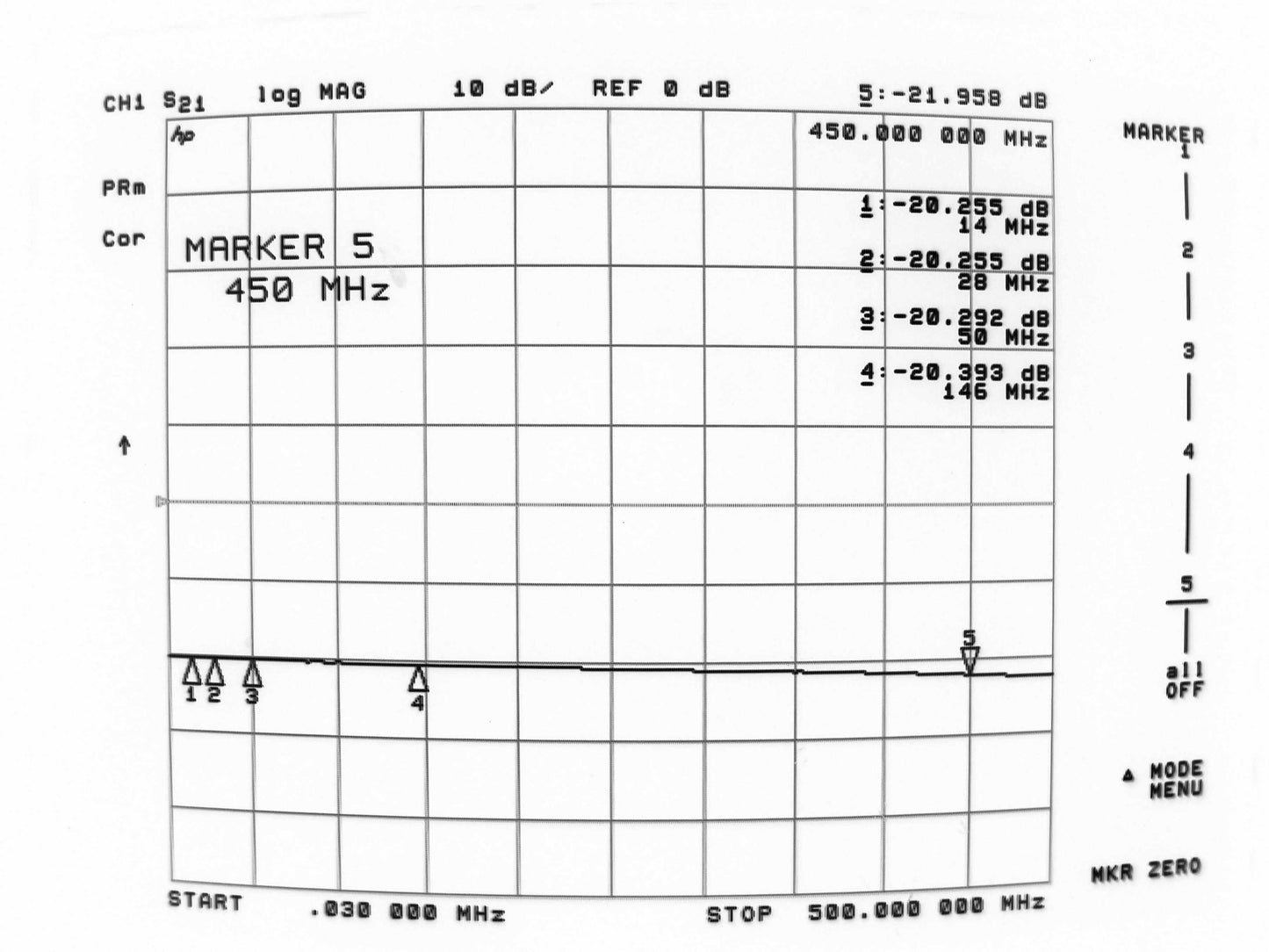

Attenuation: 20 dB +/- 0.5 dB up to 250 MHz; +/- 2.5 dB Max at 500 MHz
Dimensions: 5" X 3" X 2.25", including heatsink, excluding connectors
Weight: 12 oz.
Soldering and mechanical assembly required, all SMT components pre-installed.
Assembly Instructions: https://sites.google.com/site/rswm1site/home/at-20-high-power-attenuator
