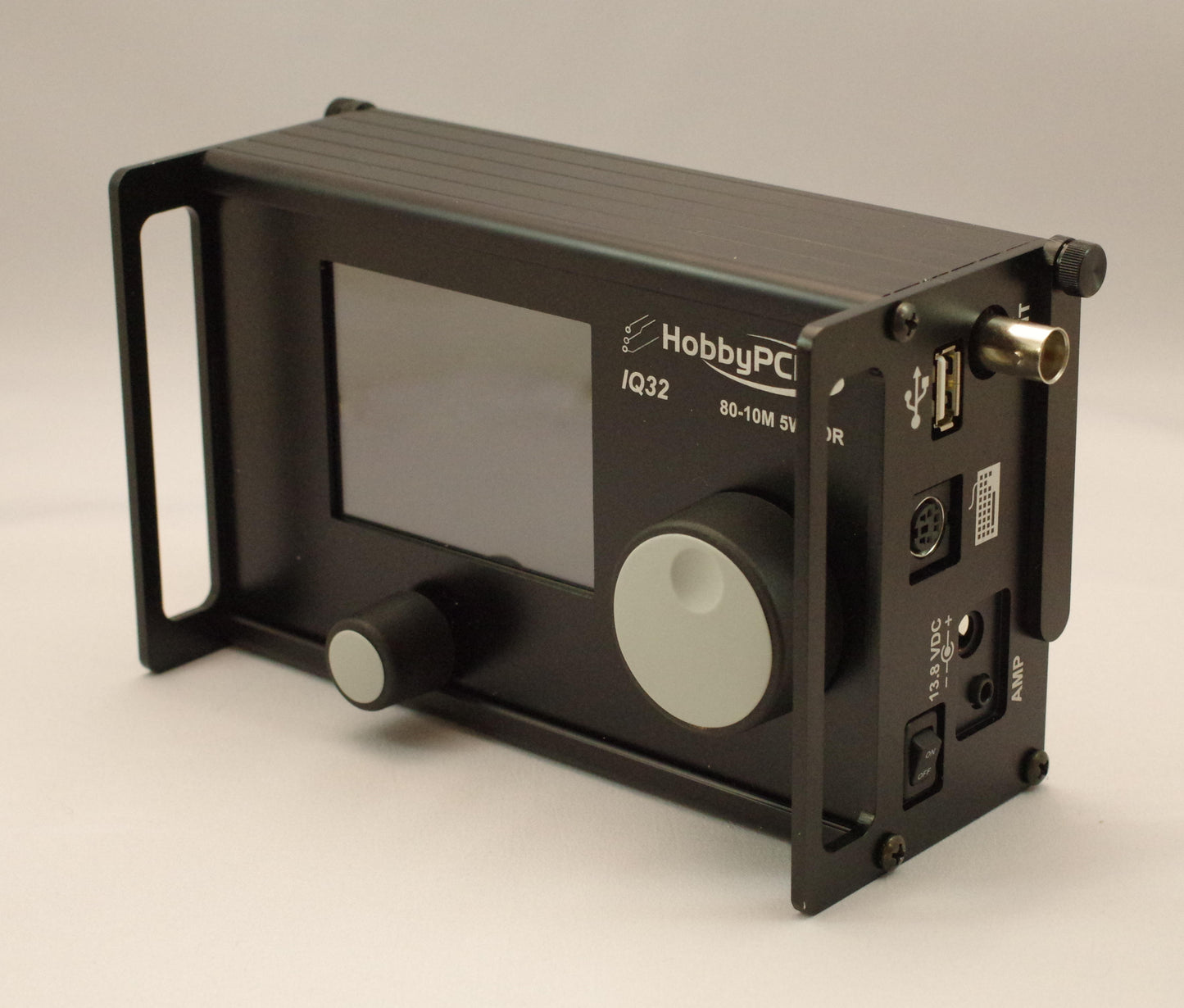

IQ32 5W HF SDR Transceiver

IQ32 5W HF SDR Transceiver

Regular price $529.00 USD
Regular price Sale price $529.00 USD
Sale Sold out

Available for immediate delivery!

Introducing the HobbyPCB IQ32 HF transceiver, based on the high performance RS-HFIQ RF system, the receiver in the IQ32 consists of 5 band-pass filters to reject out-of-band signals, an LNA with frequency dependent gain and a conventional quadrature down-converter. The transmitter features a Class A, 5W power amplifier with individual low-pass filters for each band to exceed FCC requirements for spectral purity.

The IQ32 features a large, color, touch-screen display providing an enhanced user interface and informative spectrum and waterfall displays found on radios costing much more. With a powerful STM-32 DSP processor, the IQ32 transceiver has variable filtering, multi-mode AGC, memory functions, built-in PSK encode/decode with keyboard support.

5W not enough power? Add a HARDROCK-50 to your station to boost up to 50W. The IQ32 and HARDROCK-50 seamlessly integrate together for a powerful mobile/base station!

Simple upgradeable firmware, no connection to a computer required, no drivers, no cables. Simply insert a thumb-drive with the appropriate file and the IQ32 updates its own firmware.

Specifications

  • Frequency Range: 3-30MHz (performance guaranteed on 80/60/40/30/20/17/15/12/10M ham bands)
  • Sensitivity: MDS < -128 dBm on 80M dropping to < -135 on 10M
  • Noise Figure: < 8 dB
  • TX Power: 5W typical, 4W minimum
  • LO Feed-thru: < -50 dBc @ 5W output
  • Spurious and Harmonics: < -50 dBc typical
  • DC Power: 13.8VDC, 2 amp max
  • Size: 172mm x 105mm X 75mm
  • Weight: < 700 grams
  • Display: 3.2" Color LCD Touchscreen
  • Modes: USB, LSB, CW, PSK 31
  • DSP Processor: STM-32, 32 Bit

Compare

Transceiver

HobbyPCB IQ-32

Xiegu X5105

Elecraft KX2

Price

$529.00

$669.00

$789.95

Bands

80-10M

160-6M

80-10M

Power Output

5W

5W

10W

Power Amp

Class A

Class AB

Class AB

Size

6.8” X 4.1” X 3.0”

6.6” X 3.6” X 1.9”

5.8” X 2.8” X 1.5”

Handles

Integrated

Not Available

Optional

Weight

1.5 pounds

2.1 pounds

1 pound

Display

3.2” Color, Touchscreen

3.6” Monochrome

4” Monochrome

DSP

Full IF DSP, 32 Bits

AF DSP only

Full IF DSP, 32 Bits

IF Filter

Multiple DSP filters

Analog filters

Multiple DSP filters

ATU

Available with HR50 amp

Built-in

Optional, Built-in

Battery

External Pack

Built-in

Optional, Built-in

Access the Technical Wiki for more information
