HARDROCK-50+ 100W Amp Kit
HARDROCK-50+ 100W Amp Kit
Currently out of stock, expecting new inventory around 12/27/24

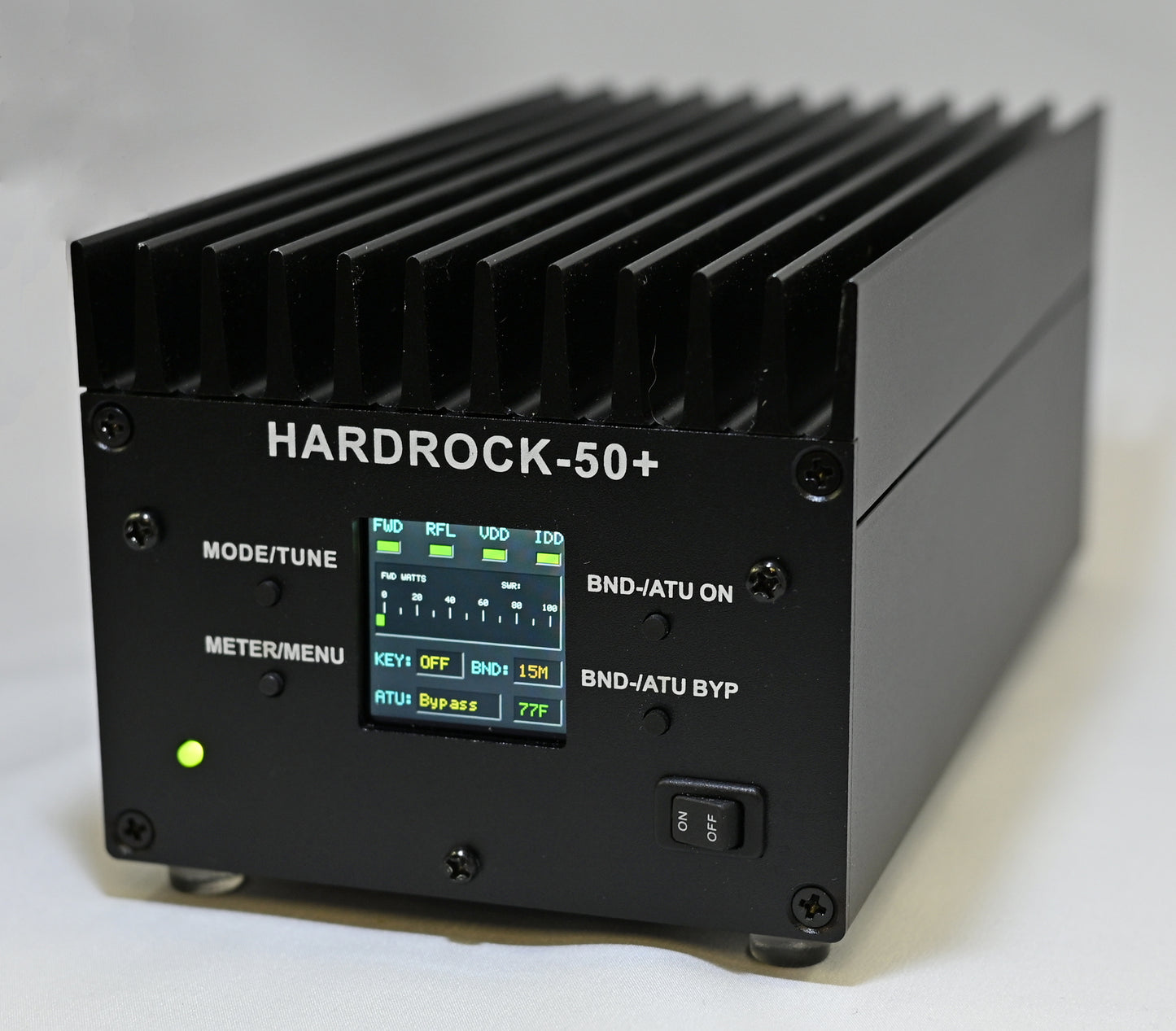

Ready for 100W for your QRP Radio. Meet the HARDROCK-50+. Available in two versions, an upgrade to your HARDROCK-50 or now as a full kit build from scratch.
If you have a Hardrock-50, you already know how a solid, well designed, 50 watt amplifier can thoroughly enhance your QRP operation. Introduced in 2013 with more than 2000 units sold, the Hardrock-50 is the most successful 50W HF+6M amplifier kit of all time. Fast forward 10 years to 2023 and the HobbyPCB engineers have managed to modernize the Hardrock-50 and double the output power in the same enclosure! The Hardrock-50+ is actually 4 oz. lighter than the Hardrock-50. There’s no need to drop more than $1000 to step up to the 100W level, we’ll get you there for much less.
The Hardrock-50+ 100W upgrade kit uses an existing Hardrock-50 amplifier and provides a new amplifier board and new control board that significantly enhances the Hardrock-50.
- Increases the output from 50W to 90-100W on 160-10M and 60-70W on 6M.
- Provides more extensive metering; Power, SWR, Temperature, Voltage and Current displays
- Uses active protection in fault conditions
- New color graphic LCD with enhanced displays and menus
- Built-in bias current measurement for easy alignment
- RF frequency detection and COR for automatic band selection with ANY transceiver
- Super efficient NXP MRF101 LDMOS transistor
- Easily powered by a 50V 4A DC power supply
- Seven element elliptical filters for each band exceeds FCC spectral purity requirements
- Uses the same ATU and interface kits as the 50W amp
Check out more information and view the assembly instructions at the HARDROCK-50 Wiki
